Model: KG-W180AD

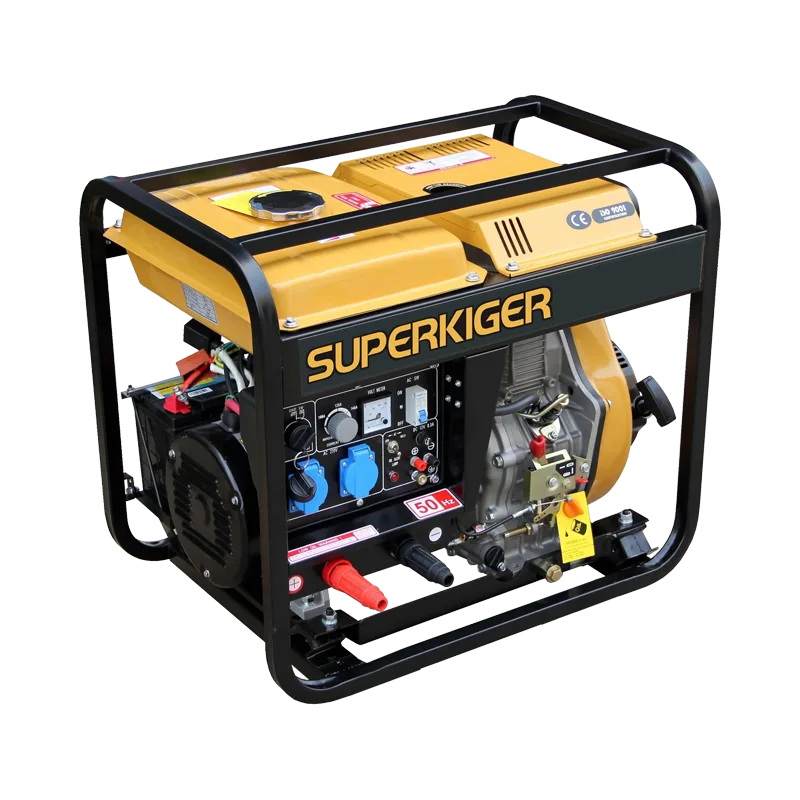

KG-W180AD 180A Diesel Welding Generator
The KG-W180AD 180A diesel welding generator is an open-frame direct-injection diesel welding set rated at 5500W.
- Rated Power5500W
- Voltage22-38V
- Net Weight125kg
- Dimensions710*490*630mm
- CertificationCE / SONCAP / ISO 9001
- Stable DC arc: the welding current is adjustable across 50-210A, so one machine covers thin sheet through heavy structural work.
- Open tubular frame: the roll-cage style frame protects the engine and welding head while the machine can be lifted by its balance points and towed between sites.
- Complete protection package: oil sensor, automatic voltage regulator and AC circuit breaker are fitted as standard rather than sold as options.
- S1 continuous duty rating: the set is rated for uninterrupted welding work, not intermittent duty.
Share to WeChat Moments
Product Description
Product Overview
The KG-W180AD 180A diesel welding generator is an open-frame direct-injection diesel welding set rated at 5500W, with an adjustable arc range of 50-210A on 22-38V DC. Its vertical single-cylinder air-cooled engine consumes less fuel than an equivalent petrol set and suits extended jobsite duty cycles.
Key Features
- Stable DC arc: the welding current is adjustable across 50-210A, so one machine covers thin sheet through heavy structural work.
- Open tubular frame: the roll-cage style frame protects the engine and welding head while the machine can be lifted by its balance points and towed between sites.
- Complete protection package: oil sensor, automatic voltage regulator and AC circuit breaker are fitted as standard rather than sold as options.
- S1 continuous duty rating: the set is rated for uninterrupted welding work, not intermittent duty.
Applications
The KG-W180AD 180A Diesel Welding Generator is built for pipeline and structural field welding, construction sites and fleet maintenance depots. For trading companies, distributors and project buyers, KG-W180AD is an economical factory-backed option with steady supply and consistent quality.
Why Choose SUPERKIGER
SUPERKIGER (Ningde Kinger Electrical Machinery CO.,LTD.) has manufactured generators, engines and water pumps in Ningde, Fujian since 2006. Products are exported to 80+ countries and regions, backed by CE, SONCAP and ISO 9001 certification. Every unit is tested before shipment, and OEM/ODM programs are available with custom colors, branding, voltage and frequency settings. With factory-direct pricing and responsive after-sales support, SUPERKIGER is a reliable partner for distributors, dealers and end customers worldwide.
Learn more about our 12,000m² factory, 100% pre-shipment load testing, and international certifications on our About Us page.
Specifications
| Welding Generator | Rated Output (ps/rpm) | 5500W |
|---|---|---|
| Rated Current | 180A | |
| Rated Voltage | 22-38V | |
| Welding Current Range (A) | 50-210A | |
| Applicable Electrode Diameter (mm) | 1.6-4.0 | |
| Continuous Duty | S1 | |
| Phase | Single Phase | |
| Frequency | 50Hz | |
| Rated AC Voltage | 220V | |
| Power Factor (cos φ) | 1 | |
| Voltage Regulation | Automatic Voltage Regulator | |
| Engine Model | KG190F / KG192F | |
| Engine Type | Single-cylinder Vertical Air-cooled Direct-injection | |
| Displacement | 476cc / 498cc | |
| Max. Power | 11HP / 15HP | |
| Fuel Type | 0# or -10# Light Diesel Oil | |
| Fuel Tank Capacity | 15L | |
| Engine Oil Capacity | 1.65L | |
| Starting System | Recoil or Electric Start | |
| Noise Level (at 7 m) | 83dB / 86dB | |
| Structure Type | Open Frame | |
| Low Oil Sensor | Included | |
| AC Circuit Breaker | Included |
Key facts
| Brand | SUPERKIGER | |
|---|---|---|
| Company | Ningde Kinger Electrical Machinery CO.,LTD. | |
| Model | KG-W180AD | |
| OEM / ODM Custom Manufacturing | Custom brand logo, canopy colors, dual-voltage ATS automation & local grid specifications. | |
Frequently Asked Questions
What electrode diameter can this welding generator use?
Electrodes from 1.6-4.0 are supported, covering thin sheet, flat bar and light structural sections. Verify stick size against your actual joint thickness and position before ordering.
Can this welder also run AC power tools?
The welding output is DC. A separate AC auxiliary supply is available on the KG160A/KG200A/KG300A series, which combine welding and AC output in one frame.
How long can it weld continuously?
The set carries an S1 continuous duty rating, meaning it is rated for uninterrupted welding rather than intermittent duty. Actual run time is bounded by the fuel tank and ambient temperature.
What voltage and frequency options are available for wholesale orders?
Standard build is 220V / 50Hz. Other AC voltage and frequency combinations can be produced to match your market grid; contact us with the destination country for a quotation.
