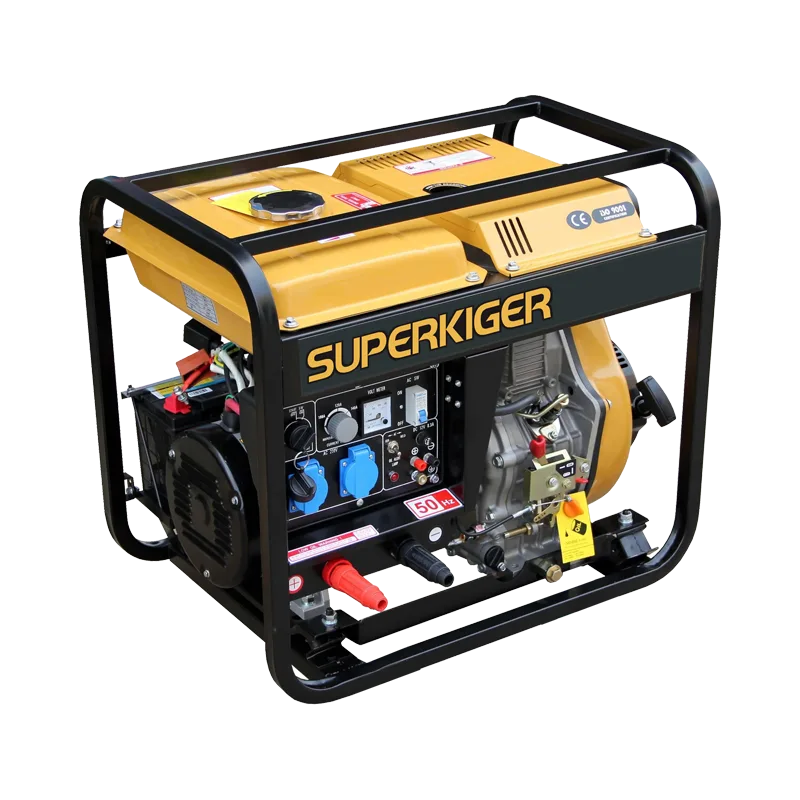

KG-W220AD 220A Diesel Welding Generator

Model: KG-W220AD

KG-W220AD 220A Diesel Welding Generator

The KG-W220AD 220A diesel welding generator is an open-frame direct-injection diesel welding set rated at 6800W.

  • Rated Power6800W
  • Voltage22-38V
  • Net Weight128kg
  • Dimensions710*490*630mm
  • CertificationCE / SONCAP / ISO 9001
  • Stable DC arc: the welding current is adjustable across 70-250A, so one machine covers thin sheet through heavy structural work.
  • Open tubular frame: the roll-cage style frame protects the engine and welding head while the machine can be lifted by its balance points and towed between sites.
  • Complete protection package: oil sensor, automatic voltage regulator and AC circuit breaker are fitted as standard rather than sold as options.
  • S1 continuous duty rating: the set is rated for uninterrupted welding work, not intermittent duty.
Direct Factory Wholesale & Container Loading

Manufacturer-direct bulk supply, competitive FOB/CIF quotation, flexible MOQ & fast sea shipment.

OEM / ODM Custom Manufacturing

Custom brand logo, canopy colors, dual-voltage ATS automation & local grid specifications.

Product Description

Product Overview

The KG-W220AD 220A diesel welding generator is an open-frame direct-injection diesel welding set rated at 6800W, with an adjustable arc range of 70-250A on 22-38V DC. Its vertical single-cylinder air-cooled engine consumes less fuel than an equivalent petrol set and suits extended jobsite duty cycles.

Key Features

  • Stable DC arc: the welding current is adjustable across 70-250A, so one machine covers thin sheet through heavy structural work.
  • Open tubular frame: the roll-cage style frame protects the engine and welding head while the machine can be lifted by its balance points and towed between sites.
  • Complete protection package: oil sensor, automatic voltage regulator and AC circuit breaker are fitted as standard rather than sold as options.
  • S1 continuous duty rating: the set is rated for uninterrupted welding work, not intermittent duty.

Applications

The KG-W220AD 220A Diesel Welding Generator is built for pipeline and structural field welding, construction sites and fleet maintenance depots. For trading companies, distributors and project buyers, KG-W220AD is an economical factory-backed option with steady supply and consistent quality.

Why Choose SUPERKIGER

SUPERKIGER (Ningde Kinger Electrical Machinery CO.,LTD.) has manufactured generators, engines and water pumps in Ningde, Fujian since 2006. Products are exported to 80+ countries and regions, backed by CE, SONCAP and ISO 9001 certification. Every unit is tested before shipment, and OEM/ODM programs are available with custom colors, branding, voltage and frequency settings. With factory-direct pricing and responsive after-sales support, SUPERKIGER is a reliable partner for distributors, dealers and end customers worldwide.

Learn more about our 12,000m² factory, 100% pre-shipment load testing, and international certifications on our About Us page.

Specifications

Welding GeneratorRated Output (ps/rpm)6800W
Rated Current220A
Rated Voltage22-38V
Welding Current Range (A)70-250A
Applicable Electrode Diameter (mm)2.5-4.0
Continuous DutyS1
PhaseSingle Phase
Frequency50Hz
Rated AC Voltage220V
Power Factor (cos φ)1
Voltage RegulationAutomatic Voltage Regulator
Engine ModelKG190F / KG192F
Engine TypeSingle-cylinder Vertical Air-cooled Direct-injection
Displacement476cc / 498cc
Max. Power11HP / 15HP
Fuel Type0# or -10# Light Diesel Oil
Fuel Tank Capacity15L
Engine Oil Capacity1.65L
Starting SystemRecoil or Electric Start
Noise Level (at 7 m)83dB / 86dB
Structure TypeOpen Frame
Low Oil SensorIncluded
AC Circuit BreakerIncluded

Key facts

BrandSUPERKIGER
CompanyNingde Kinger Electrical Machinery CO.,LTD.
ModelKG-W220AD
OEM / ODM Custom ManufacturingCustom brand logo, canopy colors, dual-voltage ATS automation & local grid specifications.

Frequently Asked Questions

What electrode diameter can this welding generator use?

Electrodes from 2.5-4.0 are supported, covering thin sheet, flat bar and light structural sections. Verify stick size against your actual joint thickness and position before ordering.

Can this welder also run AC power tools?

The welding output is DC. A separate AC auxiliary supply is available on the KG160A/KG200A/KG300A series, which combine welding and AC output in one frame.

How long can it weld continuously?

The set carries an S1 continuous duty rating, meaning it is rated for uninterrupted welding rather than intermittent duty. Actual run time is bounded by the fuel tank and ambient temperature.

What voltage and frequency options are available for wholesale orders?

Standard build is 220V / 50Hz. Other AC voltage and frequency combinations can be produced to match your market grid; contact us with the destination country for a quotation.
